Data migration from any platform to Storyblok
Storyblok is the first headless CMS that works for developers & marketers alike.
In this tutorial, we will learn how to migrate data from any platform to Storyblok. We will get the sample data from the following GitHub repo for this tutorial. However, this could be any CMS API endpoint.
Before we move forward, let's understand the structure of our sample data. We have 4 types of data in our example repo.
Post data example
Author data example
Category data example
Tag data example
Now that we have seen the data structure, let's create a Storyblok space and model the following schema.
This tutorial assumes you are familiar with Storyblok. If you are just getting started you can read our Structure of Content guide first. Next, you can use one of our ultimate tutorial series to familiarize yourself with Storyblok.
Content modeling in Storyblok
Content modeling means defining the structure of your content. For this tutorial, we are going to create a schema that could match the data structure of our example data. However, it could also be an opportunity to create a better structure.
If you want to learn more about Content modeling you can download our Content Modeling Whitepaper.
First, we are going to create Category Block (technical name: category
). This will be a Content Type Block with the following fields:
id
: Textname
: Textdescription
: Textarea
Next, we will create our Tag Content Type Block (technical name: tag
) which will be identical to the Category schema.
After the Tag Content Type Block, we will create the Author Content Type Block. You may remember this one is slightly more complex compared to the Category or Tag schema.
If we break it down, we have a links
property in our Author schema which contains multiple link objects, which include two properties name
and url
.
Let’s first create a Link Nestable Block (technical name: link
) that can be reused.
Now that we have the Link Nestable Block we can now create our Author Content Type Block (technical name: author
).
id
: Textname
: Textdescription
: Markdownavatar
: Asset (Image)links
: Blocks
The first four fields are pretty straightforward, but we used the Blocks field provided by Storyblok for the links property. By default, the Storyblok Blocks field will allow us to select all Nestable blocks in our project. But we don't want that we only want a specific component to be added here. In our case, we only want to allow our previously created Link component.
Finally, it's time for our Post Content Type Block (technical name: post
).
title
: Textfeaturedimage
: Asset (Image)excerpt
: Richtextcontent
: Richtextauthor
: Single-Optioncategories
: Multi-Optionstags
: Multi-Options
For the last three fields, you can see we used Single-Option and Multi-Options fields. Let’s configure these so that only specified data can be selected.
In the author Single-Option field, we can set the source to be Stories and restrict the content type to author. Let’s also set the path to be authors/
. This folder does not exist yet but we will shortly create it.
Next, we have categories and tags field we are going to configure those as below Images.

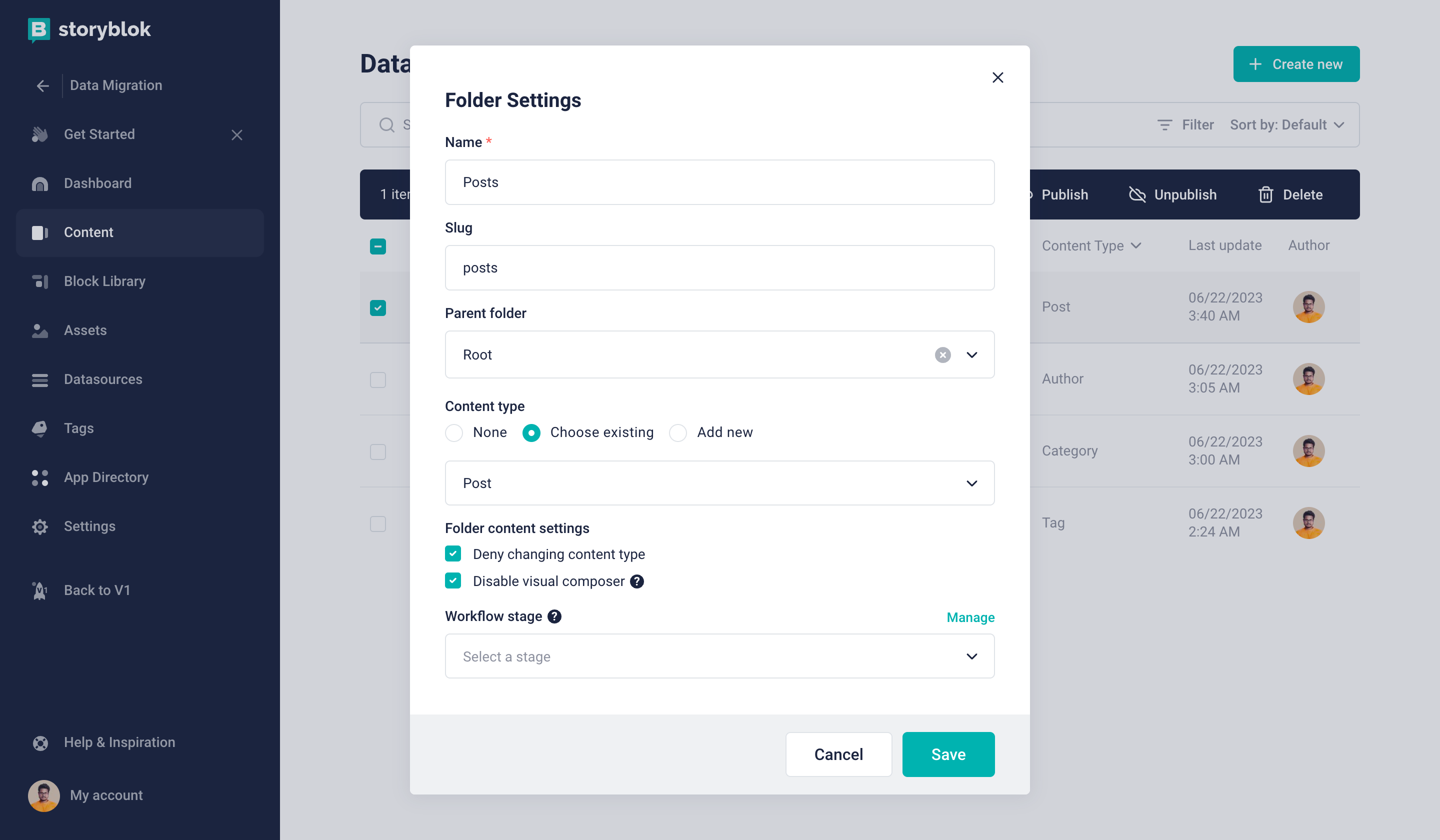

Now that we have modelled all of our content in Storyblok to match our current data, let's move on and create a few folders for the respective content types.
We will create four folders for each content type as shown in the image above.
Get relevant access tokens from Storyblok
Before we start writing our code we are going to need a few things from Storyblok, so let's collect those.
- Personal access token
- Preview access token
- Space ID
- The IDs of the four folders
In order to get a personal access token, you can go to this section in your Storyblok account and press Generate new token.
Personal access tokens are meant to be used in a secure environment!
The preview access token and space ID can be retrieved from the Settings of your Storyblok space.
You can get all the folder IDs from the URL when you navigate the folder. For example, you can check the below image.
Write our migration scripts
For the coding part, I will use Next.js for this tutorial, but the code will not be Next.js specific. You can use the same code in any other framework or in plain old Node.js.
You can find the complete source code here.
Let’s first write a few helper functions that we will use throughout our project.
The above function takes a story object and adds it to our space. You can look into our Management API docs on how you can create a story.
Storyblok Management API has rate limits. When uploading content we have to make sure we don't cross that limit. We are going to use the above function to delay our requests.
Based on our current data we know we have images that need to be uploaded to our space. The above function will help us do that. It takes an image URL and then uploads it. You can read our Management API docs on how to upload an asset here.
With the following three helper functions we can start uploading our data to Storyblok. Let’s start with uploading the tags.
In the above function, we are fetching the JSON data from our GitHub repo and then looping through it and passing the data in addToStoryblok
helper function.
Our object contains two properties:
publish
: You can set it to1
if you want that story to be published right away. Alternatively, you can leave out this property or passfalse
if you want your story to be in draft mode.story
: This is an object with multiple properties:name
: This is what you will see from the Storyblok dashboard.slug
: This will be your story’s slug. It needs to be unique.parent_id
: It's optional but in our case, we want to put all of our tags in a folder. Therefore, we have to provide the folder ID.content
: Here we have all the properties we will see in our Visual Editor. One important property here is thecomponent
. We have to give the exact Technical Name used when creating the Block.
Once we run the above function, or, in the case of Next.js, navigate to http://localhost:3000/api/upload-tags
, after a few seconds we will see the success message. Now let’s check in Storyblok how it looks.
Perfect. We have successfully uploaded all the tags. Now, let's do the same for our categories. This will be pretty similar to the tags as they have an identical schema.
Once we run the above function it will migrate all the categories in our Storyblok space. Also, don't forget to change the folder Id to match your Storyblok space.
Next on our list is the author's data. This one is a bit different than the above two. However, let’s see the code first then we can break it down.
For our authors, we have two different properties compared to tags and categories.
avatar
: Here, we are going to use ourUploadFileToStoryblok
helper function and use that information.links
: This is going to be an array, just like in the original data. However, we also have to specify thecomponent
field. We have named itlink
because, as you may remember, this is the Technical name we used while creating this Nestable block earlier.
After having run the function, let's take a look at what the Author data looks like in Storyblok.
In the above image, we can see what our author entry looks like. We have all the data present in their respective fields. We can also see the individual Link
entry as well. In the future, if we need to add more links, we can easily do that without any modifications.
In order to confirm we have uploaded the images in Storyblok, we can check the Assets section.
Finally, we have the content of the post that needs to be uploaded. This is going to be a bit more complex. First, let's create a few more helper functions that will come in handy.
If we look at our post data, we can see we have two properties excerpt
and content
containing HTML data. In the Storyblok RichText editor, we can not add the raw HTML as it is, so we will use the above helper function to convert our HTML data to the format that the Storyblok RichText editor expects.
Here is what the above function does:
- First, HTML is converted to Markdown using the turndown package.
- Next, storyblok-markdown-richtext provided by Storyblok is used to convert the Markdown data to the desired format.
Next, if we further analyze the post content structure, you will see we have author
, tags
and categories
that are only referenced via their IDs. However, in Storyblok, creating a story automatically creates an id
and uuid
.
Here is an example of tag
data after it’s been migrated to Storyblok:
Therefore, in order to reference these, we have to find their uuids
based on their old id
which we can see in the content section.
Basically, if we take the above data as an example, we have to write a function that can take the old id
(here it’s 5
) and return the uuid
(in this case it will be 8259b011-144f-443b-8018-773964cbd106
).
In the above function, we are going to use Storyblok’s Content Delivery API. This function takes two parameters:
id
: the ID of the old story referencestartsWith
: here we have to mention in which folder to look for an ID
Let's take a look at an example;
Now that we have the two helper functions, let’s write our final script for uploading all the posts.
Once the above script has run successfully we can take a look at one of the updated posts in Storyblok.
All the data is connected perfectly in the Storyblok Visual Editor. Now we can go and delete the id fields from the Tag
, Category
and Author
Content Type model. We no longer need them as we have successfully migrated all the data.
More Advanced Scenarios
In our post’s HTML, we also have images
and links
that are still pointing to the old data. In many cases, you probably want that and in those scenarios this is fine. However, what if you want to upload all the internal images to Storyblok and use those links instead of image URLs from your old CMS? Alternatively, what if you want to modify all the internal links from the old CMS? There could be many scenarios and it will be impossible to cover all these cases in one tutorial, but the following code provides a great starting point that can be modified to match your use case.
Here, we are using an HTML parsing package called cheerio in order to modify all the images from our exampleHtml
content. You can apply the same logic to your links and all the different tags.
Conclusion
Throughout this article, we have seen how we can model an existing schema using all different types of data types provided by Storyblok. Afterwards, we explored how the existing content can be migrated to Storyblok. Finally, some more advanced migration scenarios and viable solutions have been considered.
Name | Link |
---|---|
Storyblok Management API | https://www.storyblok.com/docs/api/management |
Storyblok Content delivery API | https://www.storyblok.com/docs/api/content-delivery/v2 |
Turndown | https://www.npmjs.com/package/turndown |
Storyblok Markdown to Richtext converter | https://github.com/storyblok/storyblok-markdown-richtext |
Cheerio | https://cheerio.js.org/ |
Example data repo | https://github.com/dipankarmaikap/fake-json-data |
Project source code | https://github.com/dipankarmaikap/data-migration |
